9225 115/220V Ya-cool
33 ~ 40 CFM
Product Center
Contact Us
Shenzhen YYC Motor Ltd
YYC Motor Limited
Sales Line:86-13682689090
86-755 27656335 27656878
Fax: 86-755 27648519
E-mail:info@szbestfan.com
Address: 1.3.4/F,D Bldg,Wanda Industrial Zone, Zhoushi Road,Shiyan Town, Baoan District , Shenzhen , Guangdong, China
YYC Motor Limited
Sales Line:86-13682689090
86-755 27656335 27656878
Fax: 86-755 27648519
E-mail:info@szbestfan.com
Address: 1.3.4/F,D Bldg,Wanda Industrial Zone, Zhoushi Road,Shiyan Town, Baoan District , Shenzhen , Guangdong, China
your location:Home >Product Center > New Type Fan > 92 X 92 X 25mm
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
9225B2HL |
Ball |
220-240 |
50/60 |
0.09/0.07 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
|
9225B2HT |
Ball |
220-240 |
50/60 |
0.09/0.07 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
|
9225B1HL |
Ball |
115 |
50/60 |
0.18/0.14 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
|
9225B1HT |
Ball |
115 |
50/60 |
0.18/0.14 |
14/10 |
2600/3000 |
33/40 |
0.93/1.13 |
4.2/6.1 |
32/46 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

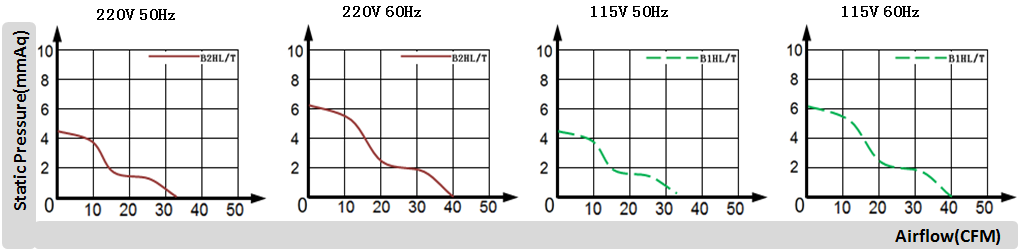

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:50PCS/CTN
