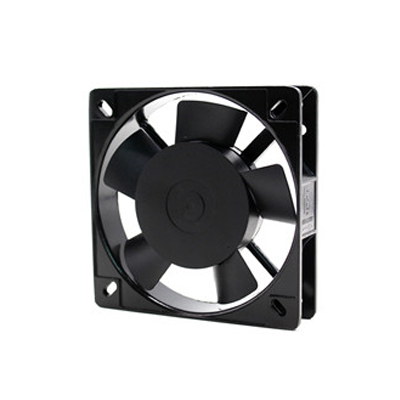

11025 115V 38 ~ 51 CFM
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
Specification
| Model | Bearing | Voltage | Freq | Current | Power | Speed | Air Flow |
Static Pressure
|
Noise | |
| VAC | Hz | A | W | RPM | CFM | m3/min | mm H2O | dB-A | ||
| 11025B1HL | Ball | 115 | 50/60 | 0.18/0.15 | 16/13 | 2250/2550 | 47/51 | 1.33/1.44 | 3.5/4.3 | 33/36 |
| 11025B1ML | Ball | 115 | 50/60 | 0.12/0.10 | 10.3/8.6 | 2100/2200 | 43/46 | 1.22/1.30 | 3.1/3.0 | 32/33 |
| 11025B1LL | Ball | 115 | 50/60 | 0.09/0.08 | 8.1/6.8 | 2000/2000 | 42/42 | 1.20/1.20 | 2.7/2.4 | 31/31 |
| 11025S1HL | Sleeve | 115 | 50/60 | 0.17/0.16 | 16/14.3 | 2100/2300 | 46/46 | 1.30/1.30 | 3.2/3.5 | 32/34 |
| 11025S1ML | Sleeve | 115 | 50/60 | 0.12/0.10 | 10.5/8.8 | 2000/2000 | 43/43 | 1.22/1.22 | 2.6/2.3 | 31/31 |
| 11025S1LL | Sleeve | 115 | 50/60 | 0.09/0.08 | 8.1/7 | 1850/1750 | 42/38 | 1.20/1.08 | 2.4/1.9 | 28/27 |
All model could be customized. Please contact with YYC Sales.
Safety: CE/CCC
Specifications are subject to change without notice.
Air Flow-Static Pressure Characteristics
